Piano U1 Switch (Linear, 45pcs)
New Arrival
Tax included. Shipping calculated at checkout
Our support team is available to help you within 24 hours.
Piano U1 Switch (Linear, 45pcs)
Sale price€14,98
Regular price€16,65
45gf Linear Switch | 5-Pin | Factory Lubed

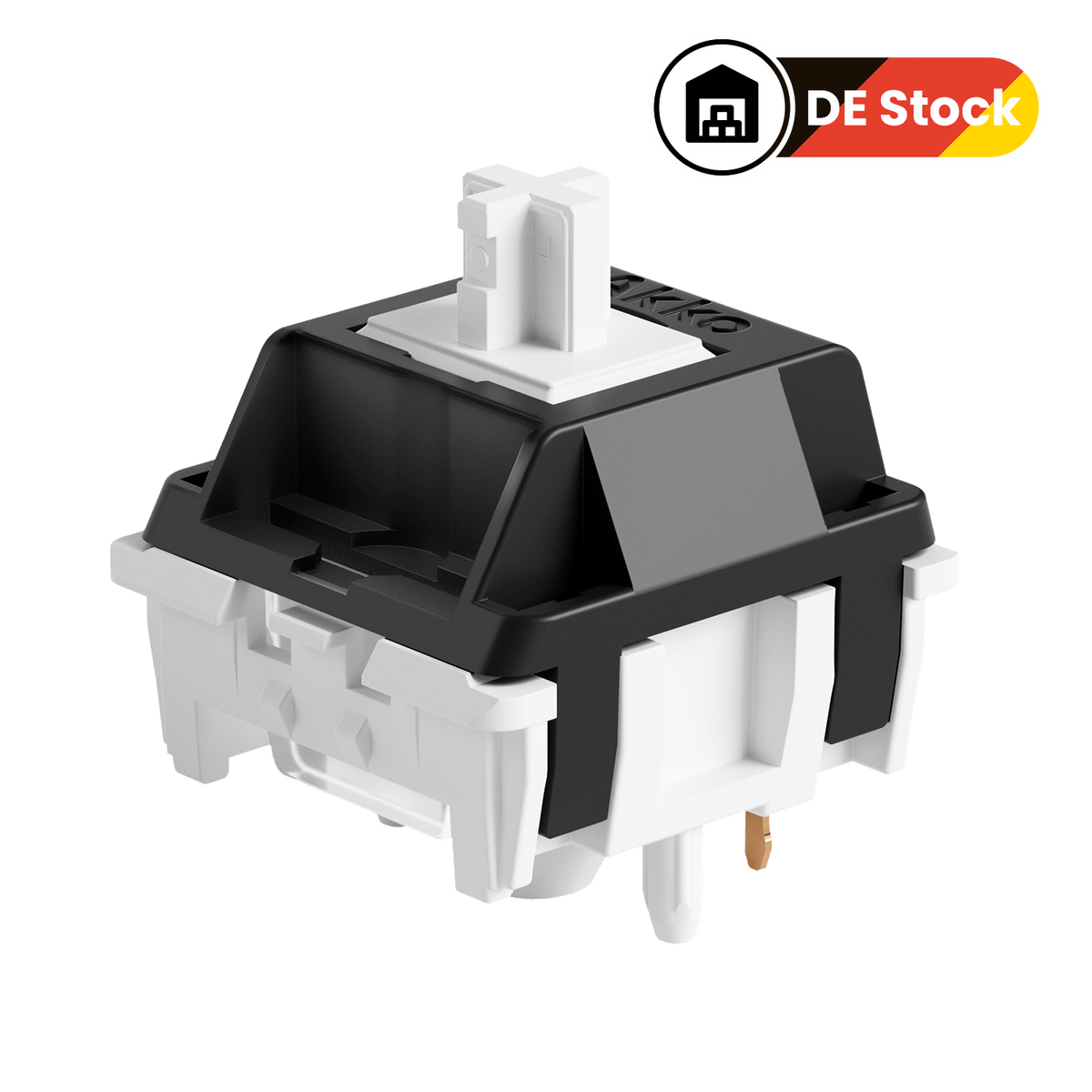

Akko Piano U1 Switch
- Type: Linear
- Operating Force: 45 ± 5gf
- Initial Force: 38gf Min
- End Force: 50 ± 5gf Max
- Total Travel: 3.5 ± 0.3mm
- Work Travel: 2.0 ± 0.3mm
- Materials: PC/LY/PA66
- 45 pcs a box.
Piano U1 Switch (Linear, 45pcs)

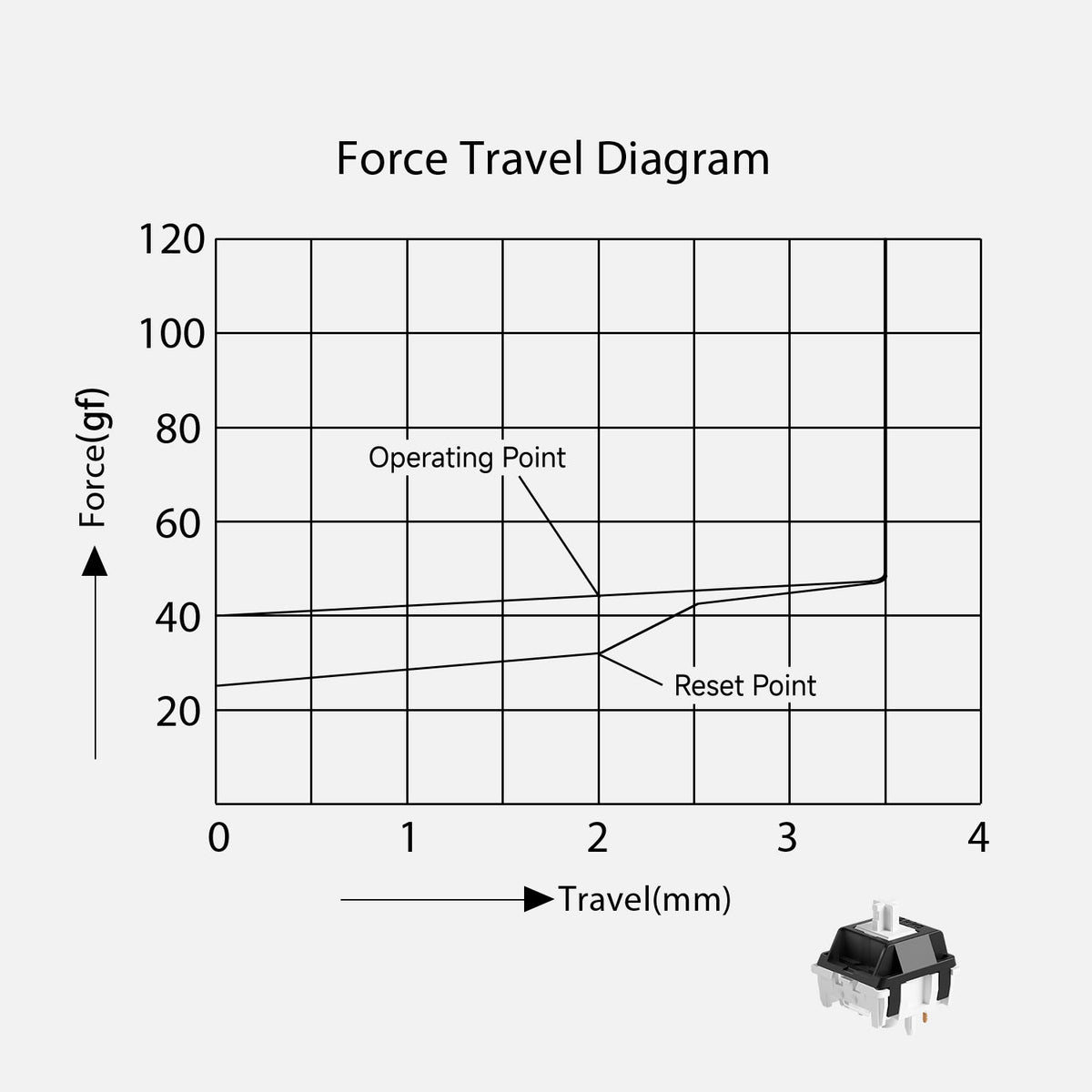

TECH SPECS
Early tactile bump for faster feedback response
Type
Linear
Operating Force
45 ± 5gf
Pre-travel
2.0 ± 0.3mm
Total Travel
3.5 ± 0.3mm
Initial Force
38gf Min
End Force
50 ± 5gf Max
Mounting Pins
5-Pin switch (can be modified to 3-Pin)
Materials (Stem/Top/Bottom)
PC/LY/PA66
Factory Lube
Yes
Switch Tech
MX Style
Compatibility
Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed.
