MonsGeek M1 V5 TMR Magnetic Keyboard US-ANSI

MonsGeek M1 V5 TMR Magnetic Keyboard DE Stock

MonsGeek MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI

€214,19

TMR Sensor | Full Range 0.005mm RT | MagMech Compatible | Rapid Disassemble

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI

8,000Hz

Polling Rate

32,000Hz

Scanning Rate ( Black/White Transparent & New Black Gradient V1)

TMR Sensor

RT 0.005mm

MagMech

8K Polling Rate

Rapid Disassemble

RGB Backlit

32-bit Cortex-M4

Aluminum CNC

Device Latency Breakdown

Every key press goes through three ultra-fast stages. Optimizing all three is the key to achieving true low-latency performance.

Each stage is optimized to deliver consistently fast and responsive input.

Device Scan

Time to detect key position changes.

Range: 0.03 – 0.05ms

✓ Optimized with 32K Scan Rate

Internal Processing

MCU processes scan data internally.

Range: 0.1 – 0.5ms

✓ Optimized with Logic ICs

Transport

USB polling rate interval.

Range: 0.125ms (8kHz Polling)

Each stage is optimized to deliver consistently fast and responsive input.

32K Scanning Rate

Check here to learn more about keyboard scan rate.

Faster Response, Lower Latency

A higher scan rate allows the keyboard to detect switch movements earlier and more consistently.

Faster input response
Reduced latency
More responsive feel

More Precise Rapid Trigger

With 32K scanning, even tiny finger movements are detected immediately. This enables accurate resets, stable rapid trigger behavior, and predictable actuation during fast-paced input.

Ideal for: Competitive gaming and precision control.

Engineered for True 32K Performance

High scan rates require more than speed — they require the right architecture.

M1 V5 TMR uses 15 dedicated logic ICs to reduce MCU load and ensure stable high-speed performance — even under extreme input conditions.

TMR Sensor

High-precision TMR sensing enables faster, more accurate key detection for responsive gaming performance.

Deliver a more precious and stable typing experience!

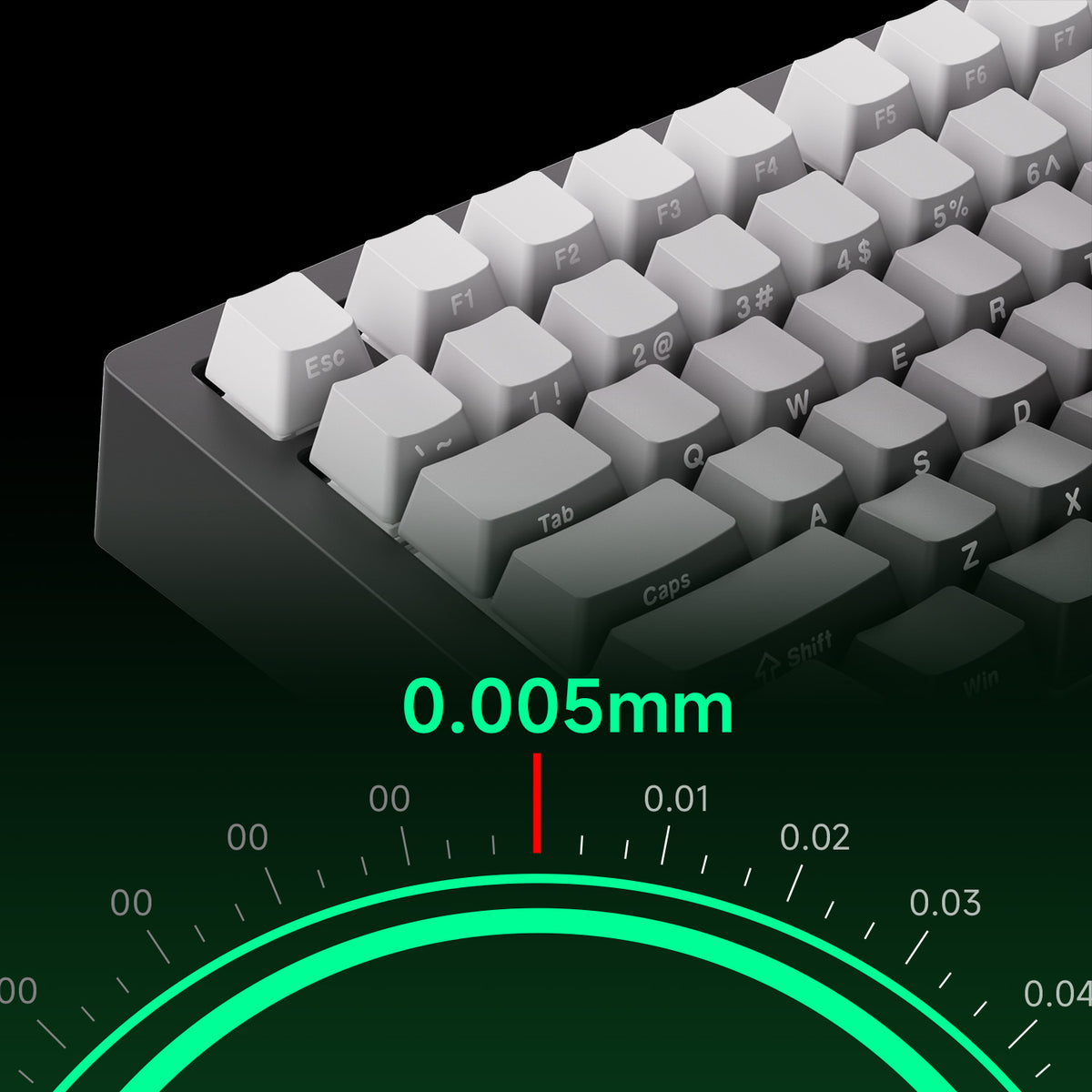

Full Range RT0.005mm

New Black Gradient (V2) delivers Rapid Trigger sensitivity down to 0.005 mm, with actuation adjustable in 0.005 mm steps. Other versions support 0.01 mm steps.

Fine-tune your actuation for faster response and precise control.

MonsGeek M1 V5 TMR ISO Magnetic Keyboard Mechanical Magnetic Switches Compatible

MagMech: Compatible with Magnetic Switches and Mechanical Switches

Users can mix and match magnetic switches and any 5-pin mechanical switches freely, like never before!

Imagine having only WASD / Arrow keys swapped for magnetic switches and leaving the rest for mechanical for a classic mechanical typing experience. What a dream!

Cross-Compatible with Mainstream Magnetic Switches

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI supports 5 third-party magnetic switches. Simply select the switch in the MonsGeek Driver and calibrate after replacement. You can also mix and match different switches across keys.

Disclaimer: High-precision magnetic switches may require tuning and calibration. The listed switches are tested to support 0.01 mm precision. Other switches may be compatible but may not achieve the same accuracy.

MonsGeek M1 V5 TMR ISO Magnetic Keyboard CPU

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life.

MonsGeek M1 V5 TMR ISO Magnetic Keyboard 8000Hz Polling Rate

Universal 8K Polling Rate

With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.

Black MonsGeek M1 V5 SP Mechanical Keyboard Rapid Disassemble Design

Ball-catch Design

Rapid Disassemble without Screws or Tools

Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.

Note: Before dissemble the top cover, please use the included key puller to pull out the knob.

MonsGeek M1 V5 TMR ISO Magnetic Keyboard Driver

Web-based Online Drive

Endless Remapping and Backlight Customization

Online Driver

Classic Features

Snap Key

Snap Key, Monsgeek's SOCD implementation, prioritizes the latest input for faster directional shifts, ensuring smooth, responsive control in FPS games.

Adjustable Actuation Distance

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

FUN60 Ultra TMR/HE Magnetic Keyboard Rapid Trigger

Rapid Trigger (RT)

Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel—perfect for FPS gaming.

FUN60 Ultra TMR/HE Magnetic Keyboard Dynamic Keystrokes

Dynamic Keystrokes (DKS)

A single key supports four actions—light press for action 1, deeper press for action 2, and two-stage release settings.

FUN60 Ultra TMR/HE Magnetic Keyboard Toggle Key

Toggle Key (TGL)

TGL (Toggle Key) turns a key into a switch that can either hold a function or trigger it repeatedly at high speed.

Mod-Tap

Mod Tap allows dual-function keys—tap for one action, hold for another—offering greater gaming convenience.

Akko AstroAim Magnetic Switch

Type: Linear
Total Travel: 3.5 ± 0.1mm
Initial Force: 35gf
End Force: 55gf
Initial Magnetic Flux: 95 ± 15Gs(PCB1.6mm) / 110 ± 15Gs(PCB1.2mm)
Bottom-out Magnetic Flux: 580 ± 40Gs(PCB1.6mm) / 720 ± 50Gs(PCB1.2mm)
Top/Stem/Bottom: PC/POM/PA66
LED Diffuser

Akko Astrolink Magnetic Switch

Type: Linear
Total Travel: 3.4mm
Initial Force: 36 ± 5gf
End Force: 46gf
Initial Magnetic Flux: 90 ± 15Gs(PCB1.6mm) / 100 ± 15Gs(PCB1.2mm)
Bottom-out Magnetic Flux: 480 ± 40Gs(PCB1.6mm) / 640 ± 40Gs(PCB1.2mm)
Top/Stem/Bottom: POM/PC/Nylon
LED Diffuser

Akko Glare Magnetic Switch

Type: Linear
Total Travel: 3.4mm
Operating Force: 25gf Min
Actuation force at 2.0mm Travel: 40 ± 5gf
End Force: 48gf Max
Initial Magnetic Flux: 95+15GS (PcB1.6mm)
Bottom Magnetic Flux: 589+50GS (PcB1.6mm)
Top/Stem/Bottom: PC/POM/PC
LED Diffuser

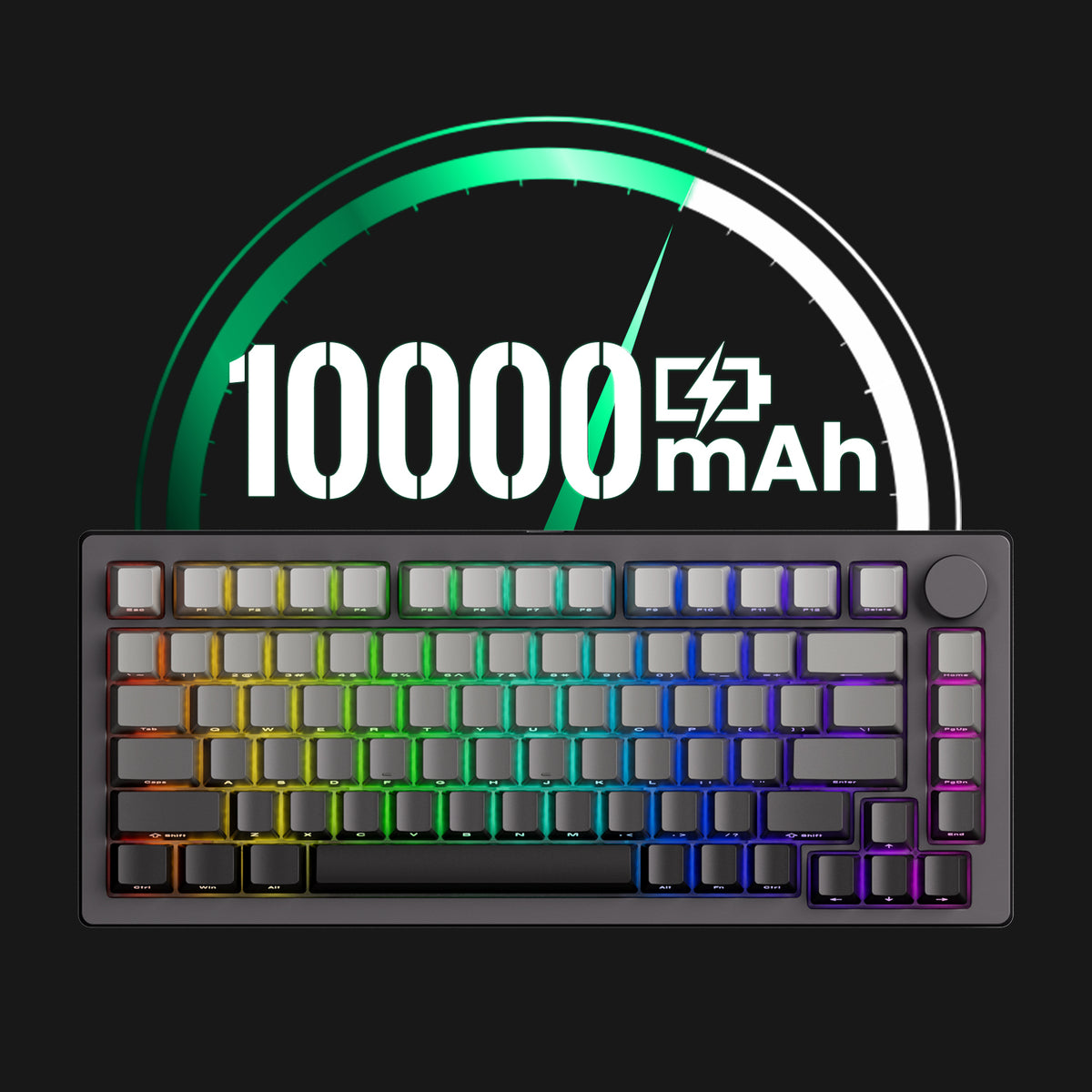

Built-in 10,000mAh Battery

New Black Gradient(V2) features a 10,000mAh battery, while other versions come with an 8,000mAh battery, providing ample power for extended typing, gaming, and everyday use between charges.

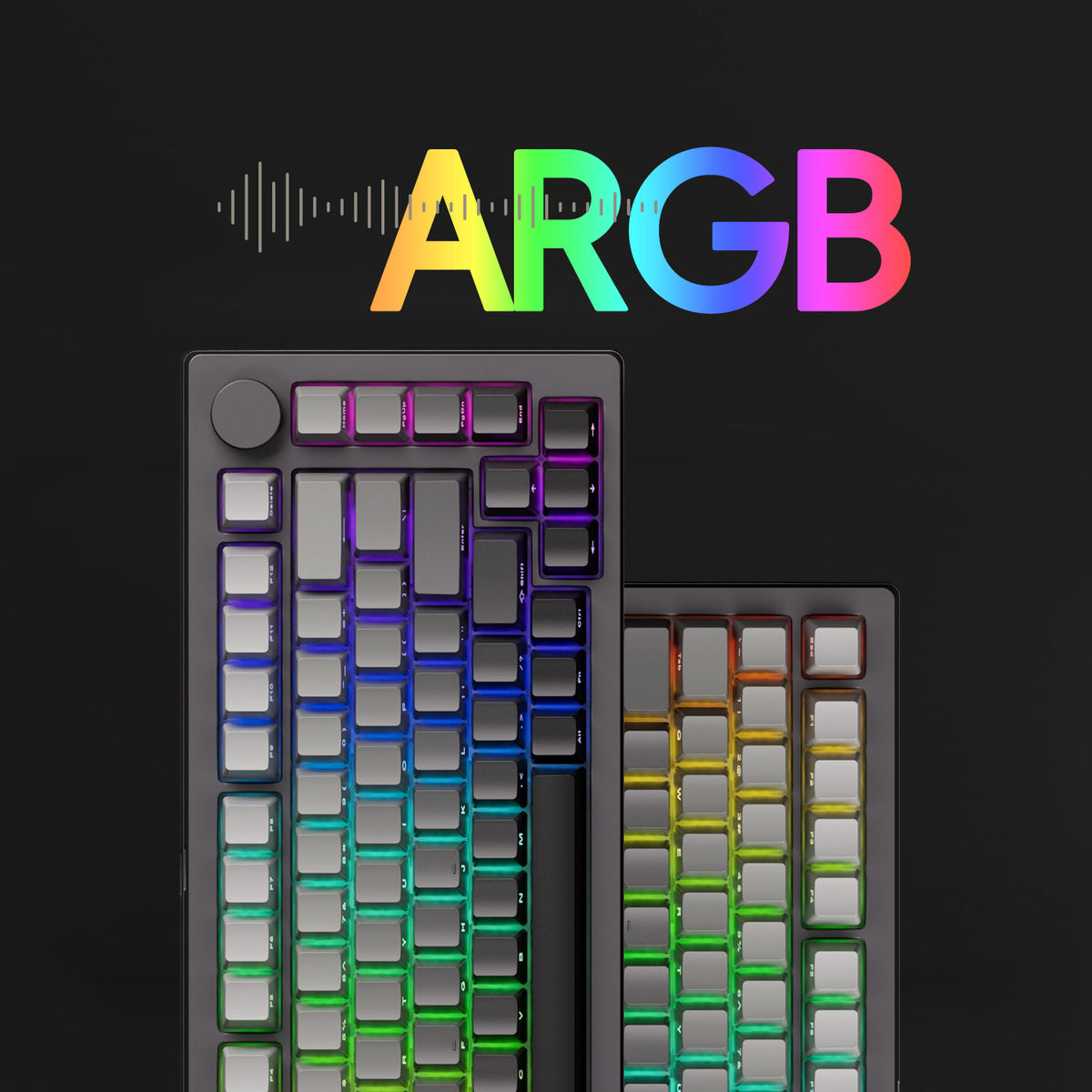

ARGB at a 500Hz Refresh Rate

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds.

MonsGeek M1 V5 TMR Magnetic Keyboard Custom Knob

Programable Knob

M1 V5 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.

The New Black Gradient (V2) features an updated encoder with a slightly lower-profile knob and a firmer rotation for a more controlled feel.

Easily control the volume and lighting and program to other funtions.

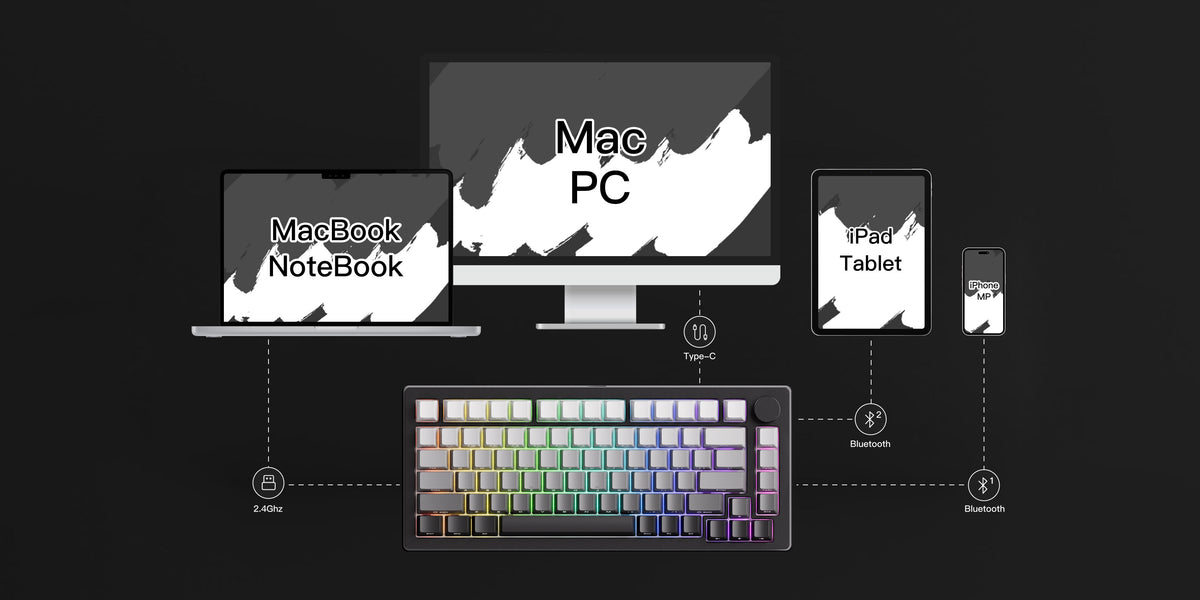

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI Multi-Mode

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI features a 75% layout and is equipped with 8000mAh built-in battery, providing extended, uninterrupted typing, gaming, or productivity without the need for frequent recharging.

For the New Black Gradient (V2) version, the USB-C port has been recessed deeper into the case, helping reduce connector movement during use.

2.4Ghz Wireless

Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.

BT 5.0

Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.

USB-C Wired

Offer a choice for users who prefer a USB-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.

System Switch

Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)

Note: The switch is located under the CAPS key

PORON Plate Foam

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.

MonsGeek M1 V5 TMR ISO Magnetic Keyboard Structure

More Flexibility and Sounds Better

MonsGeek M1 V5 TMR Magnetic Keyboard - US-ANSI come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.

Note:

The plate is available in both PC and aluminum options. Please refer to the product specifications below for each model to see the exact configuration and details.
On the New Black Gradient (V2), the silicone bushings are intentionally pre-cut to ensure proper installation. This does not affect normal use or performance.

MonsGeek M Series QC Disclaimer

M1 V5 TMR & HE
