MonsGeek M3 QMK DIY Kit
Impuestos incluidos. Los gastos de envío se calculan al finalizar la compra
The time period for the delivery of an order is divided into two parts: processing time and shipping time. Processing time usually takes up to 48 hours. Shipping times vary depending on the different shipping methods for each product category. The shipping time depends on the shipping method you have selected.
For most countries, the delivery is about 10-18 working days.
Click Here to View More Details.
Our support team is available to help you within 24 hours.
TKL south-facing aluminum barebone keyboard.
MonsGeek M3 DIY Kit
TKL keyboard kit

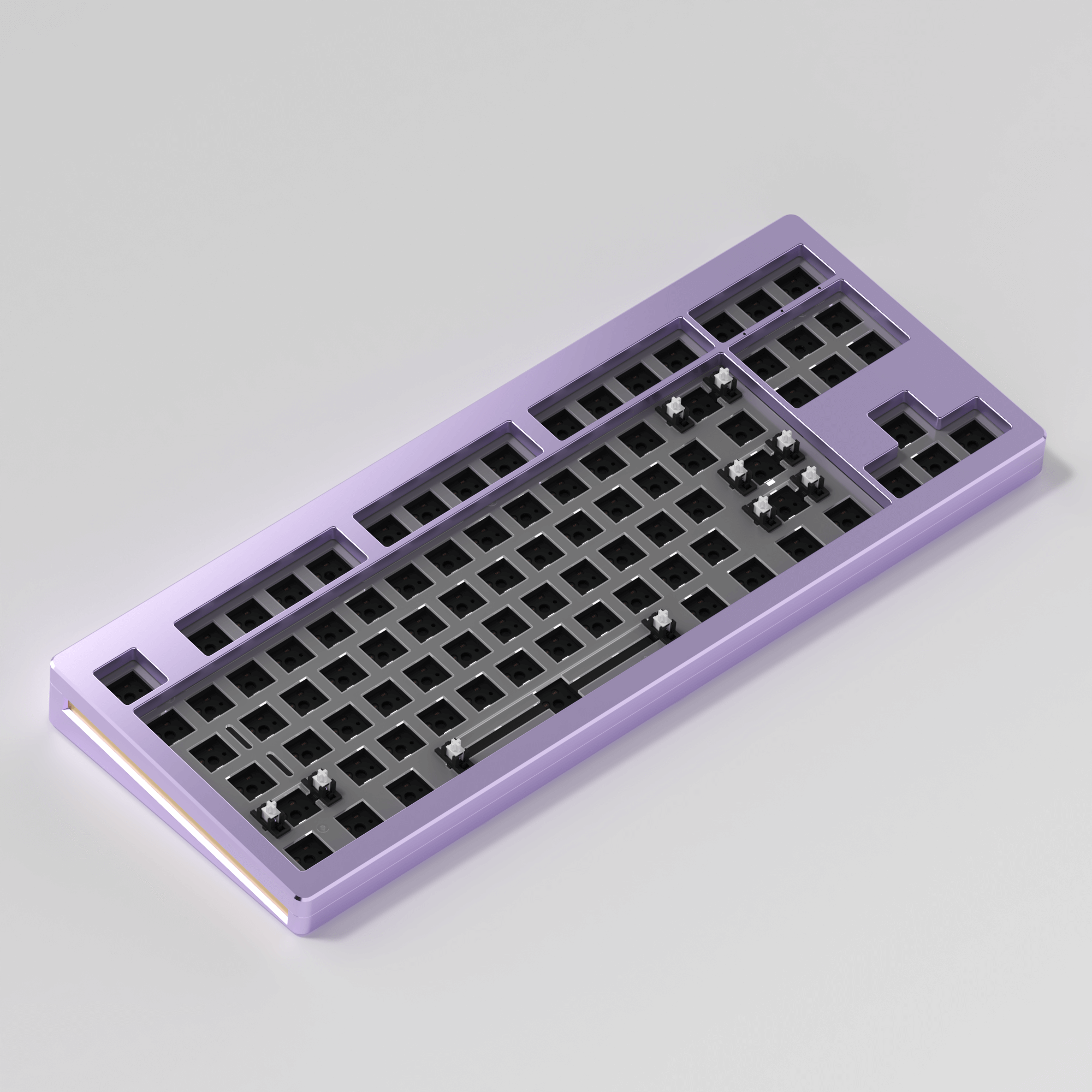

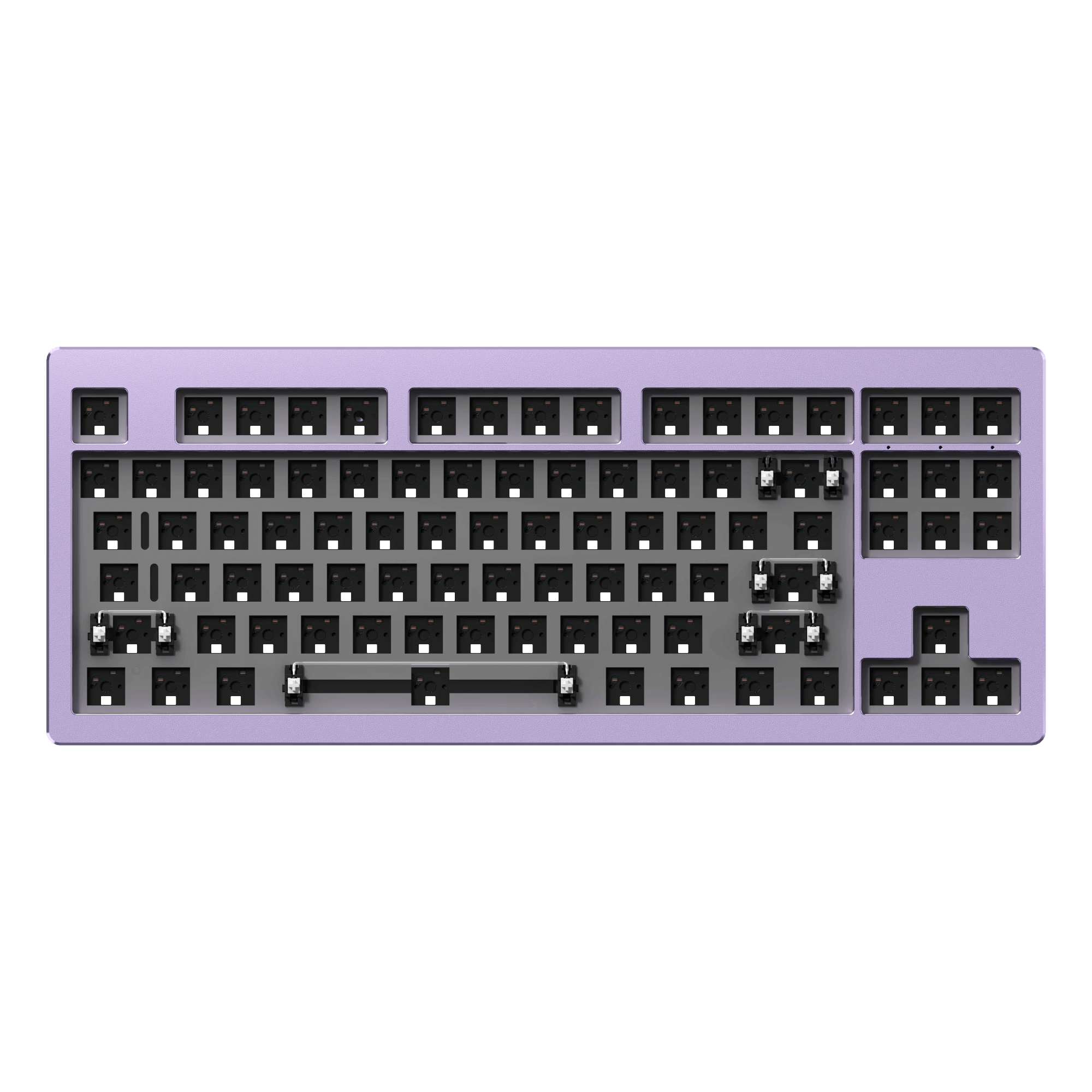

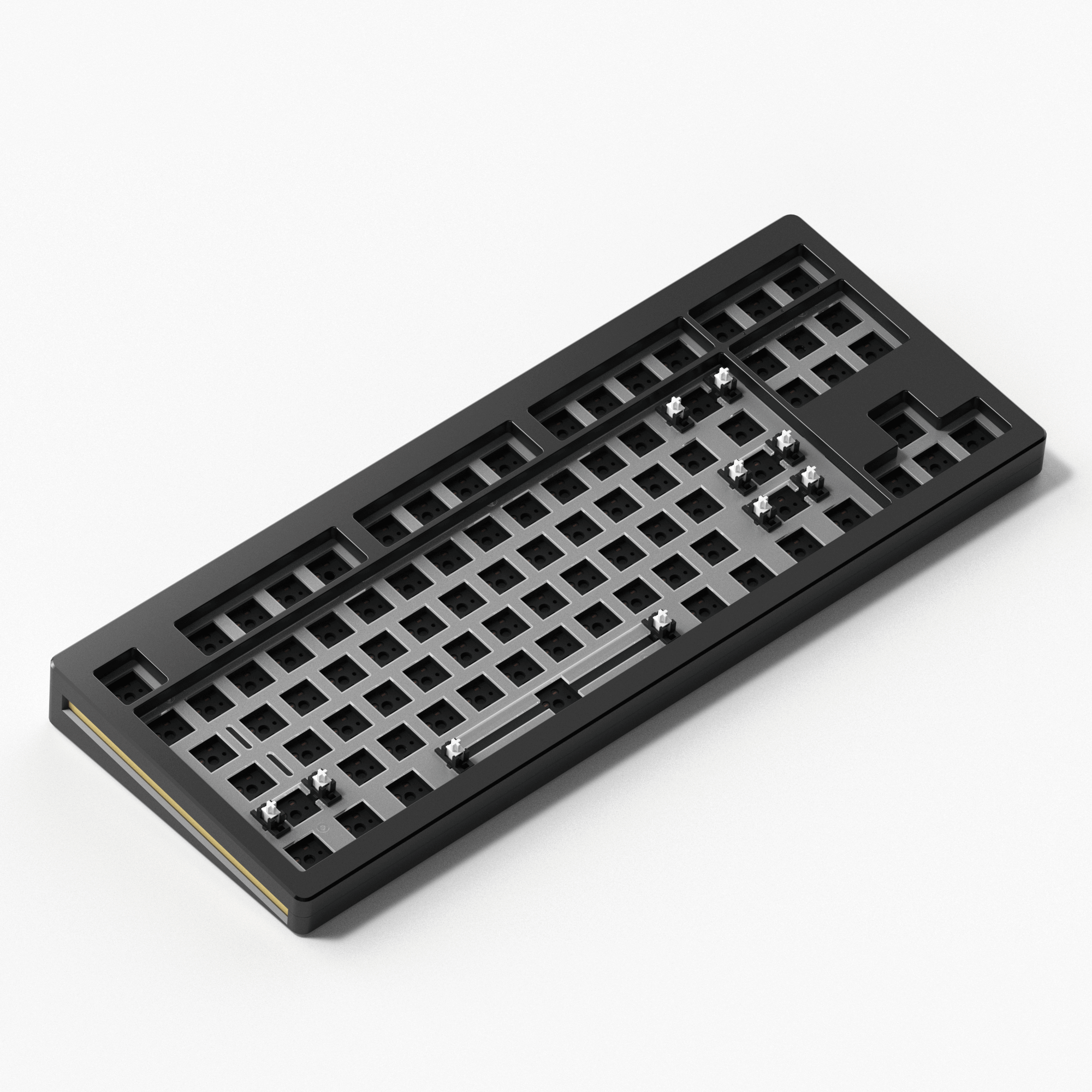

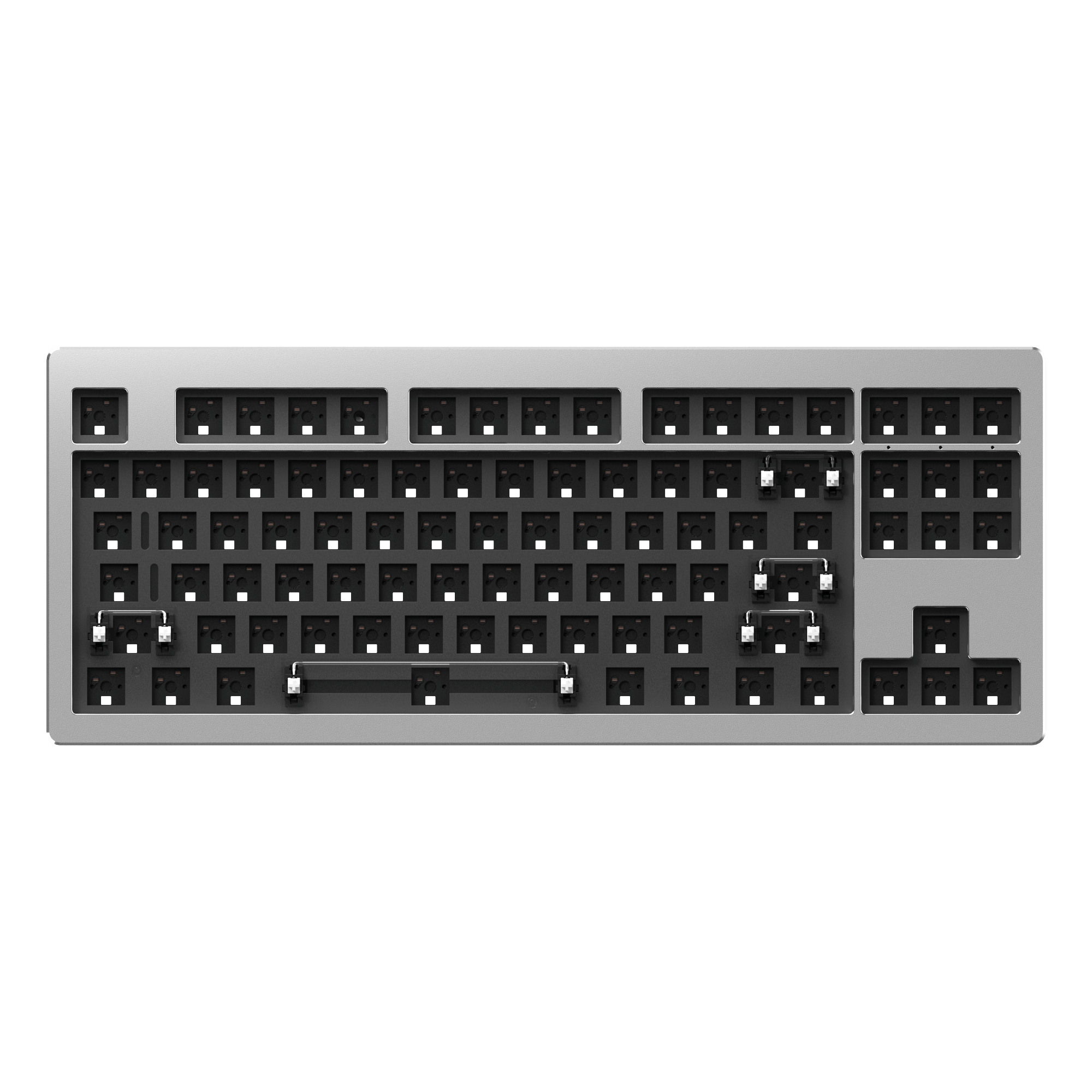

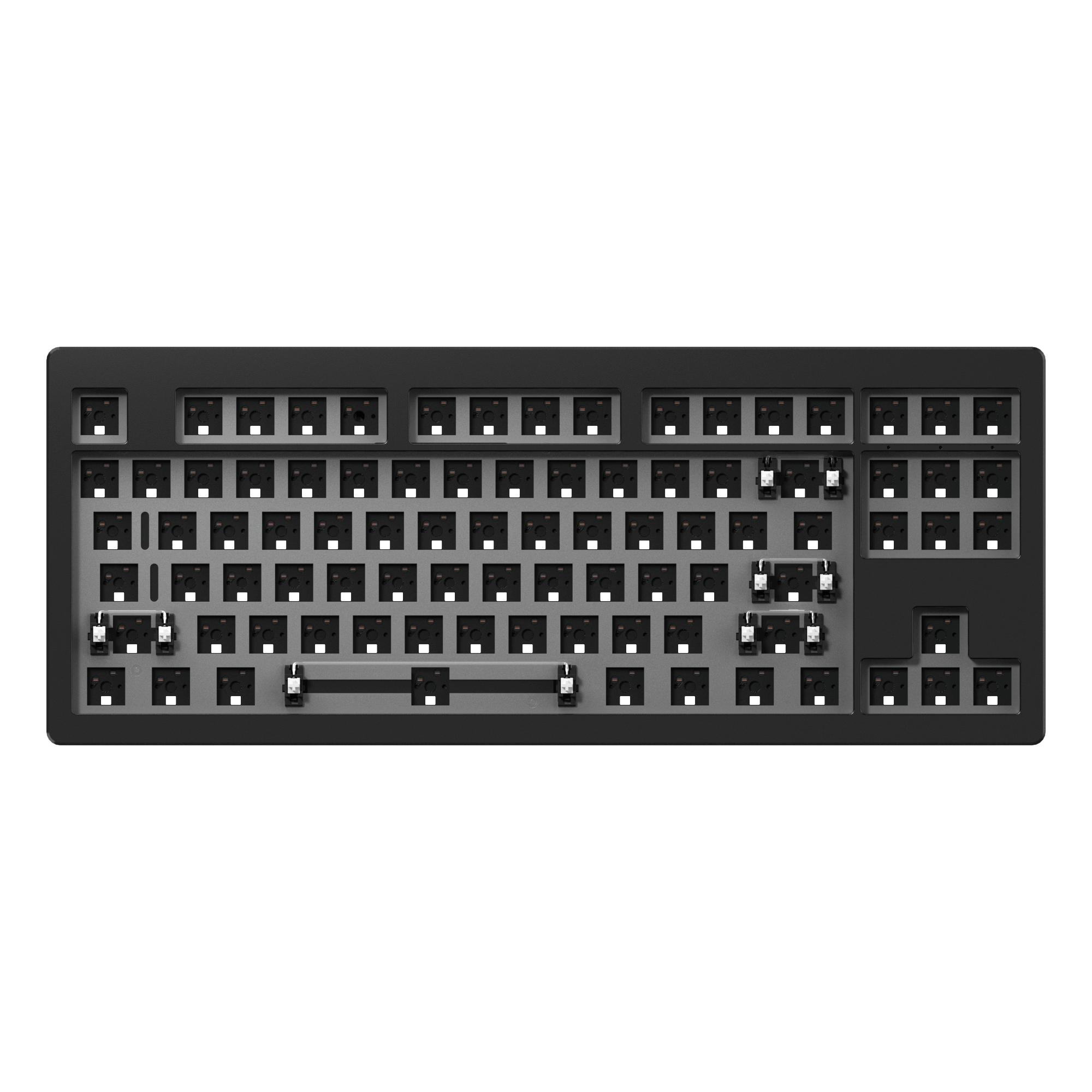

M3 is a TKL south-facing aluminum barebone keyboard.
TKL Tenkeyless keyboards come with 87 keys, a perfect layout without a number pad to balance size and functionality which helps give more desk space.
Disclaimer: we do NOT sell domestic non-VIA/QMK version on global store. All M series wired models you see are international version exclusive.
Stabilizers
PCB Mount/Screw-in stabilizers tend to vibrate less. M3 TKL keyboard kit uses Akko transparent white stabilizers (un-assembled) with nylon housing in case users want to lubricate.

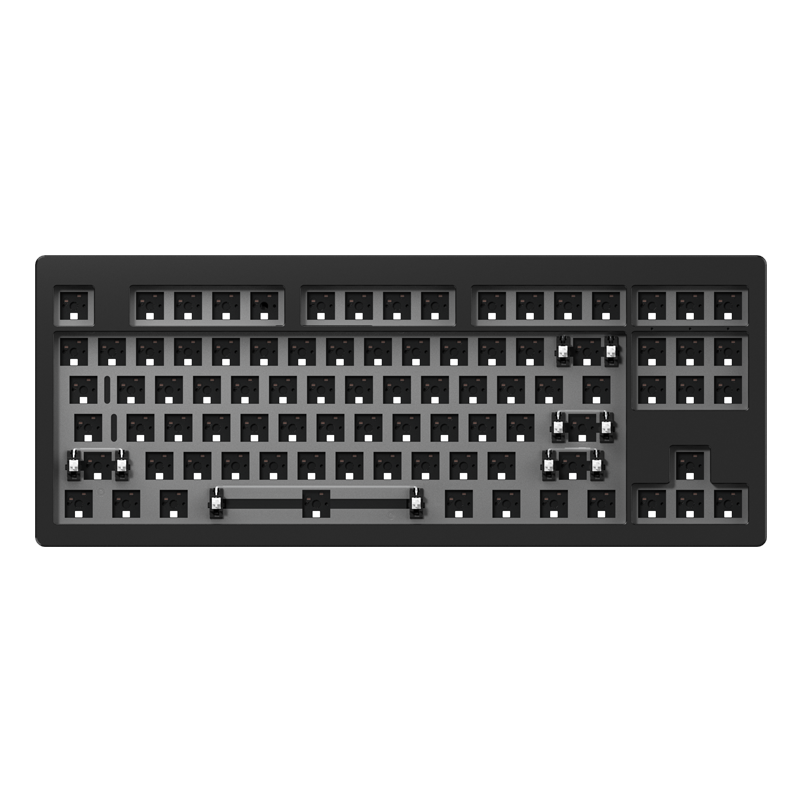

South-facing PCB
The south-facing PCB of the M3 TKL keyboard kit avoids causing interference with Cherry profile keycaps, offering more compatibility and flexibility.

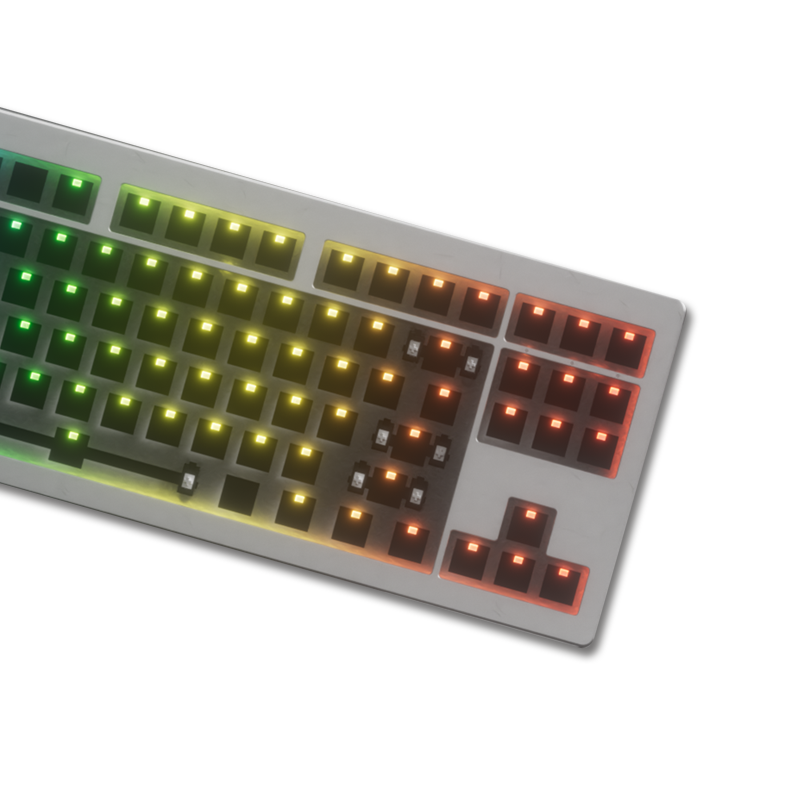

Customizable RGB
M3 TKL keyboard kit offers approximately 18 preset backlight modes, which allow users to adjust the brightness and flowing speed levels. Moreover, it supports a wide range of RGB effects, with over 16.8 million colors available. Users can also install an upcoming JSON file to access even more lighting effects and configurations.

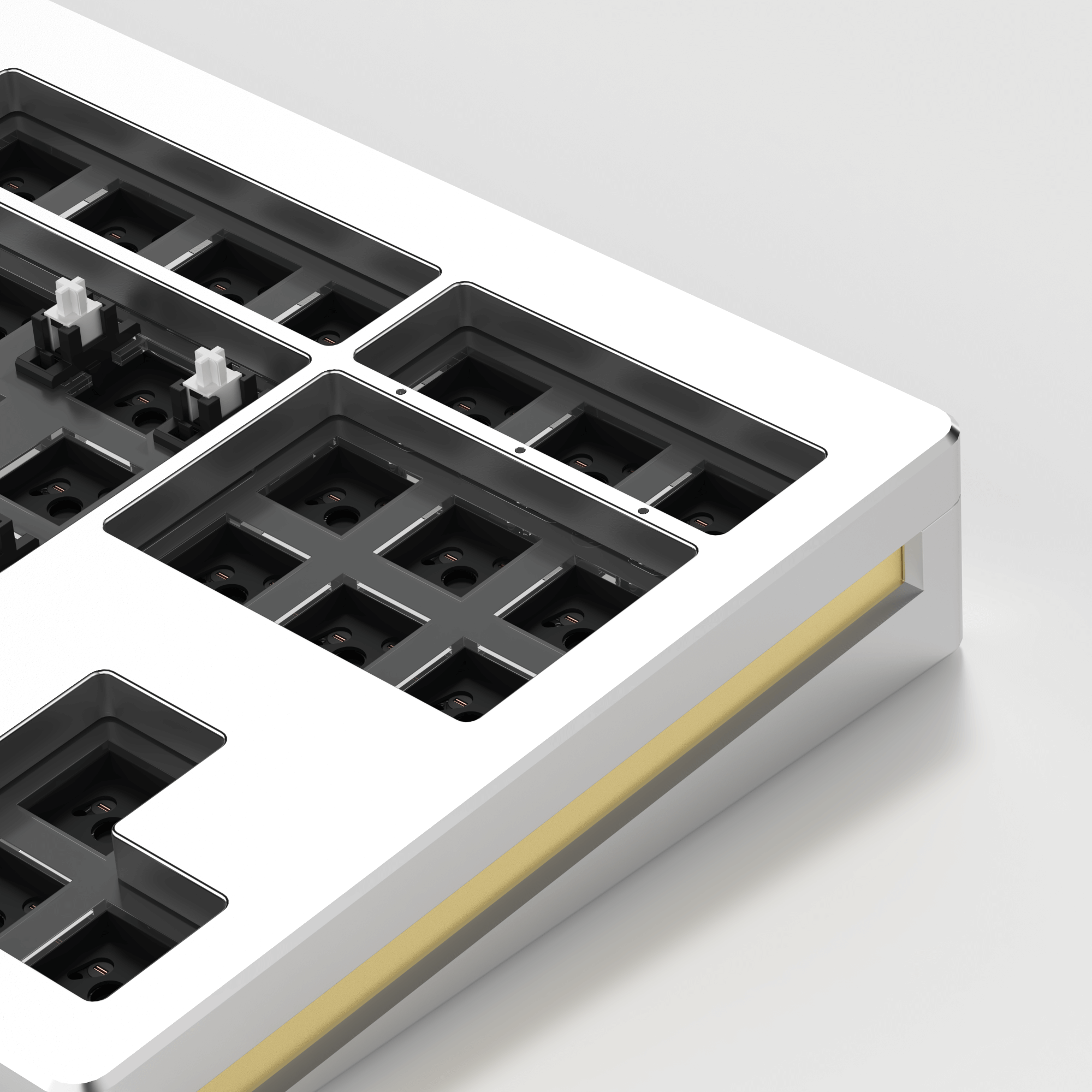

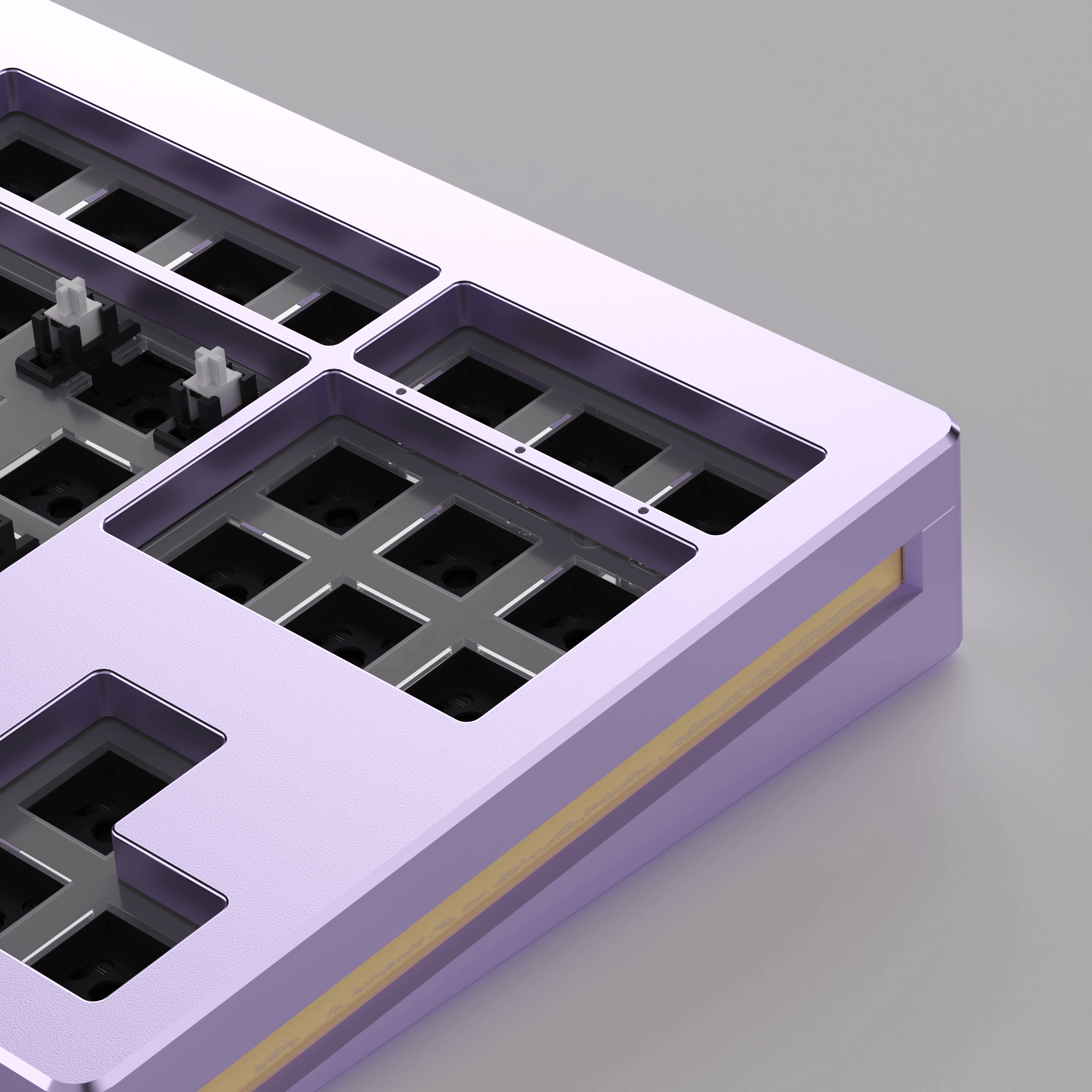

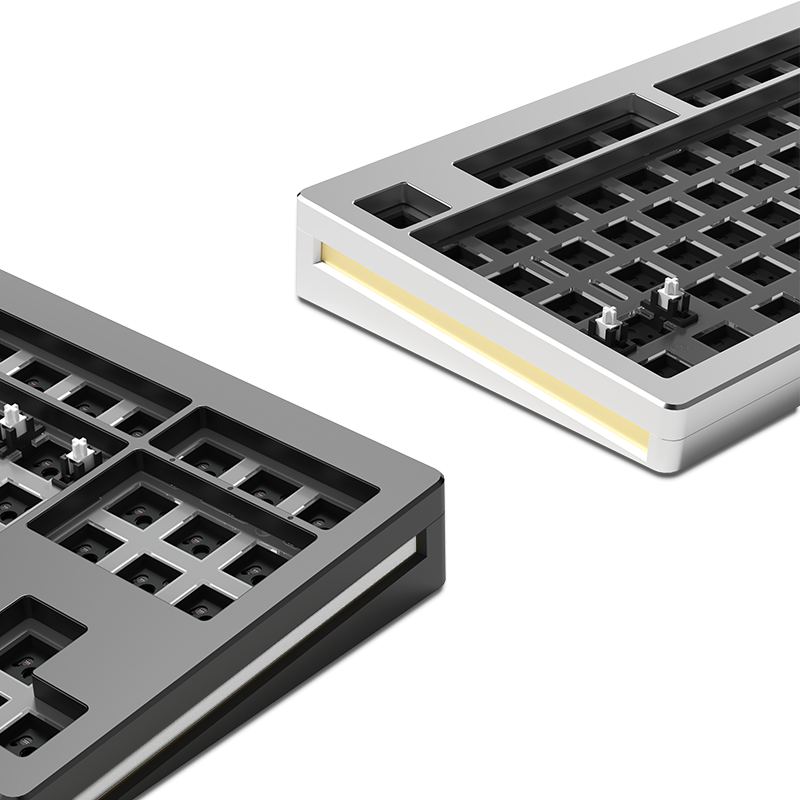

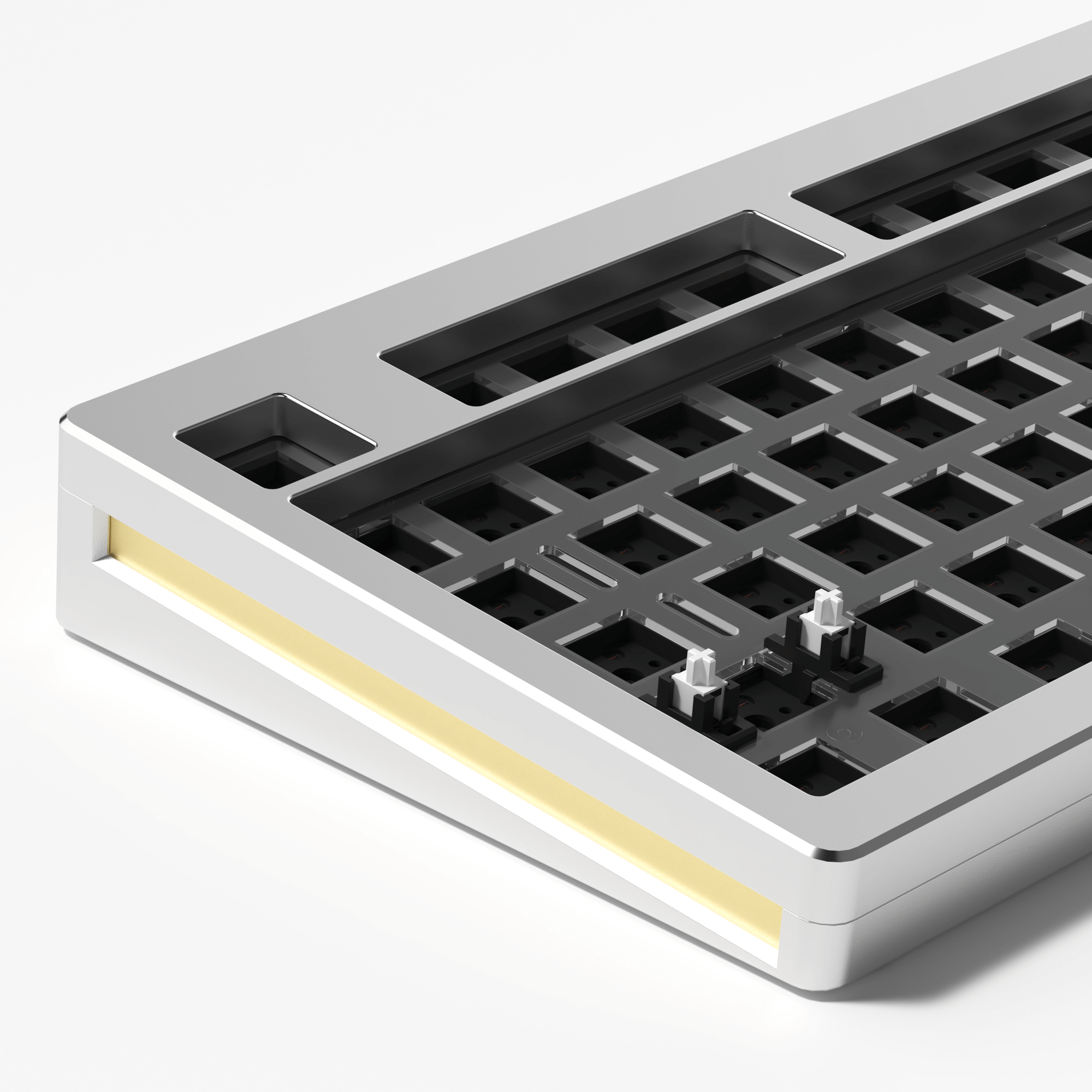

New Silver Accent
Adding a touch of class and elegance, we opted to add a beautiful golden accent so that no matter which way you look at it, you’ll fall in love over and over again.
N-Key Rollover
The N-Key Rollover technology allows all keys to work simultaneously and ensures every keystroke is recorded and prevents ghosting.

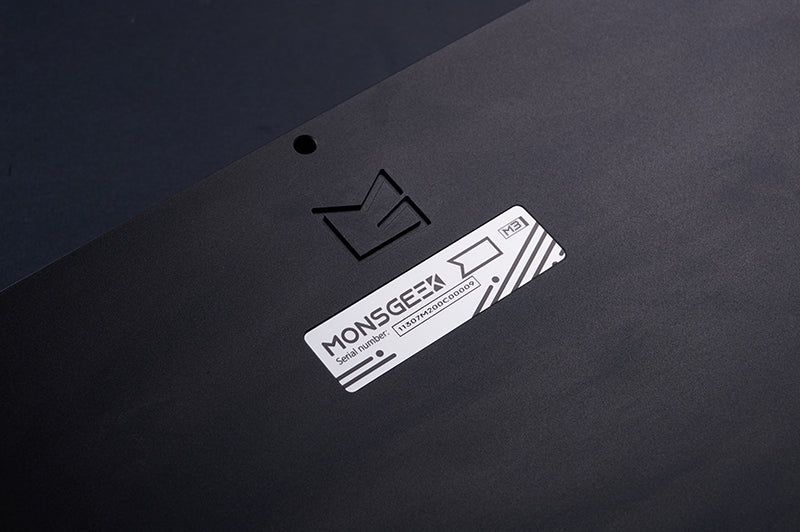

Engraved Back Design
M3 TKL keyboard kit Aluminum Kit QMK version has adopted the new engraved back design with a re-sized sticker for aesthetics purposes.
QMK / VIA Support
MonsGeek M3 TKL keyboard kit supports VIA for cross-platform (Linux/Mac/Windows) advanced keyboard configuration.
QMK is currently undergoing certification. Users who wish to implement it before the official pull request can download the source code.
This feature is exclusively for the international version of M3.

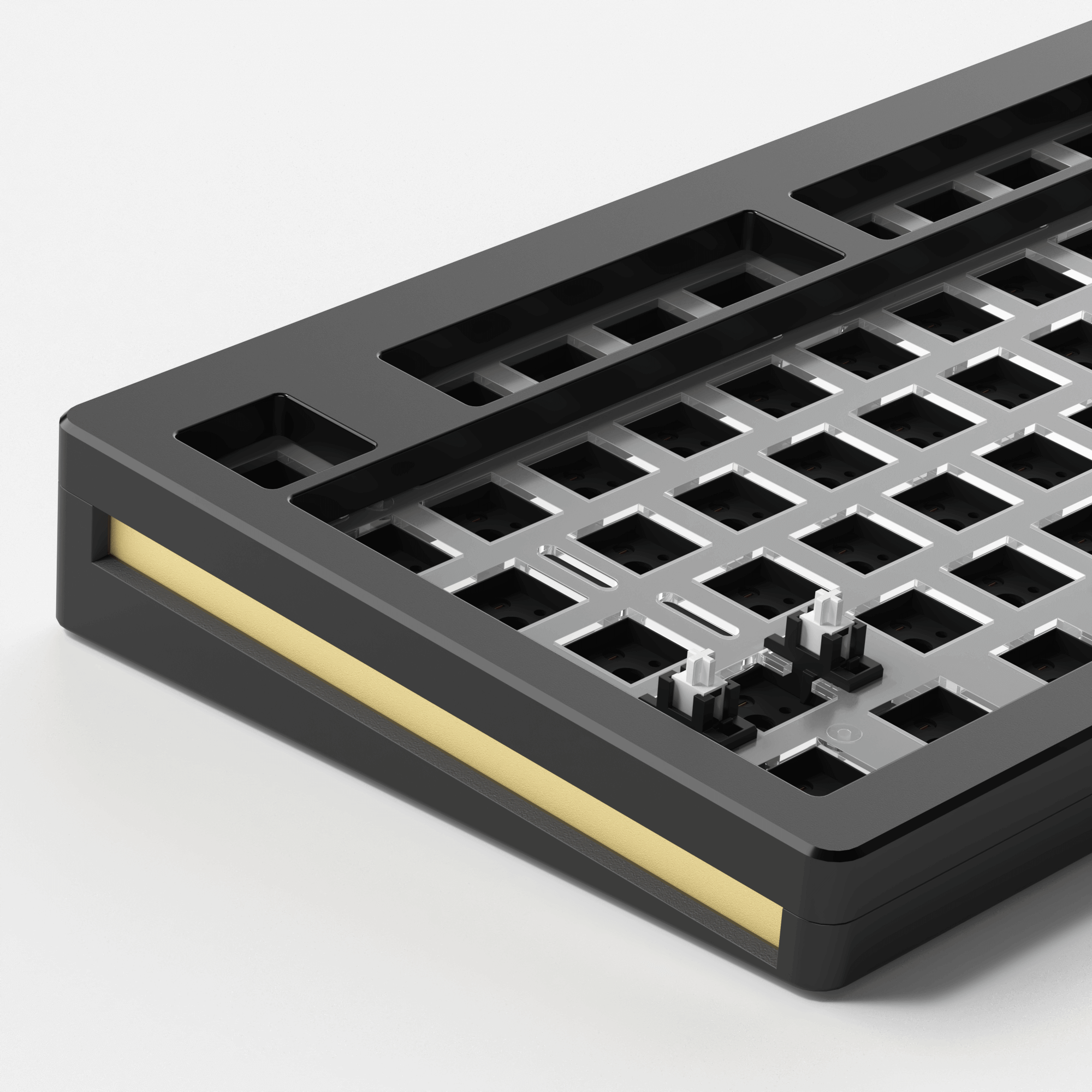

Need More Foam?
Monsgeek has developed its own budget custom material that performs equally as well as poron. Meanwhile, MonsGeek M3 custom kit comes with an additional sponage case foam to reduce case ping.
*Disclaimer: Using thicker foam may reduce flex, whether to include it or not is down to your personal preference.
PET Insulation Layer
A PET insulation layer has been added to the bottom case in order to prevent any short circuit issues. It’s rare for these issues to occur but we want to add extra protection.
Accessories to Play With
Extra teflon pads included for users who wish to perform a force break mod.
Extra tape for users who wish to perform a tape mod.
MonsGeek includes a 3mm PORON foam for a balanced feeling. Disclaimer: the foam will affect the overall sound profile and flex.
MonsGeek M3 QMK DIY Kit
Product specification
Learn more about the MonsGeek M3 QMK DIY Kit in the user manual.
User ManualM3 (international QMK ver)
Gasket
Aluminum CNC
Black / Silver / Purple
Wired(Coiled Cable)
South-facing RGB
3-pin & 5-pin
1.2mm
PC
Y (MonsGeek Custom Material)
IXPE
Y (MonsGeek Custom Material 3mm)
Y
Y (not pre-installed)
Akko Screw-in Stabilizer (pre-clipped, but not pre-installed, 4*2u+1*6.25u)
Teflon Pads (not pre-installed)
VIA/QMK
36.6cm*14.6cm*3.4cm
Around 1950g
