Full Range 0.01mm RT | Cross-compatible | MagMech Compatible | Rapid Disassemble
M1 V5 TMR Megnatic Switch Keyboard

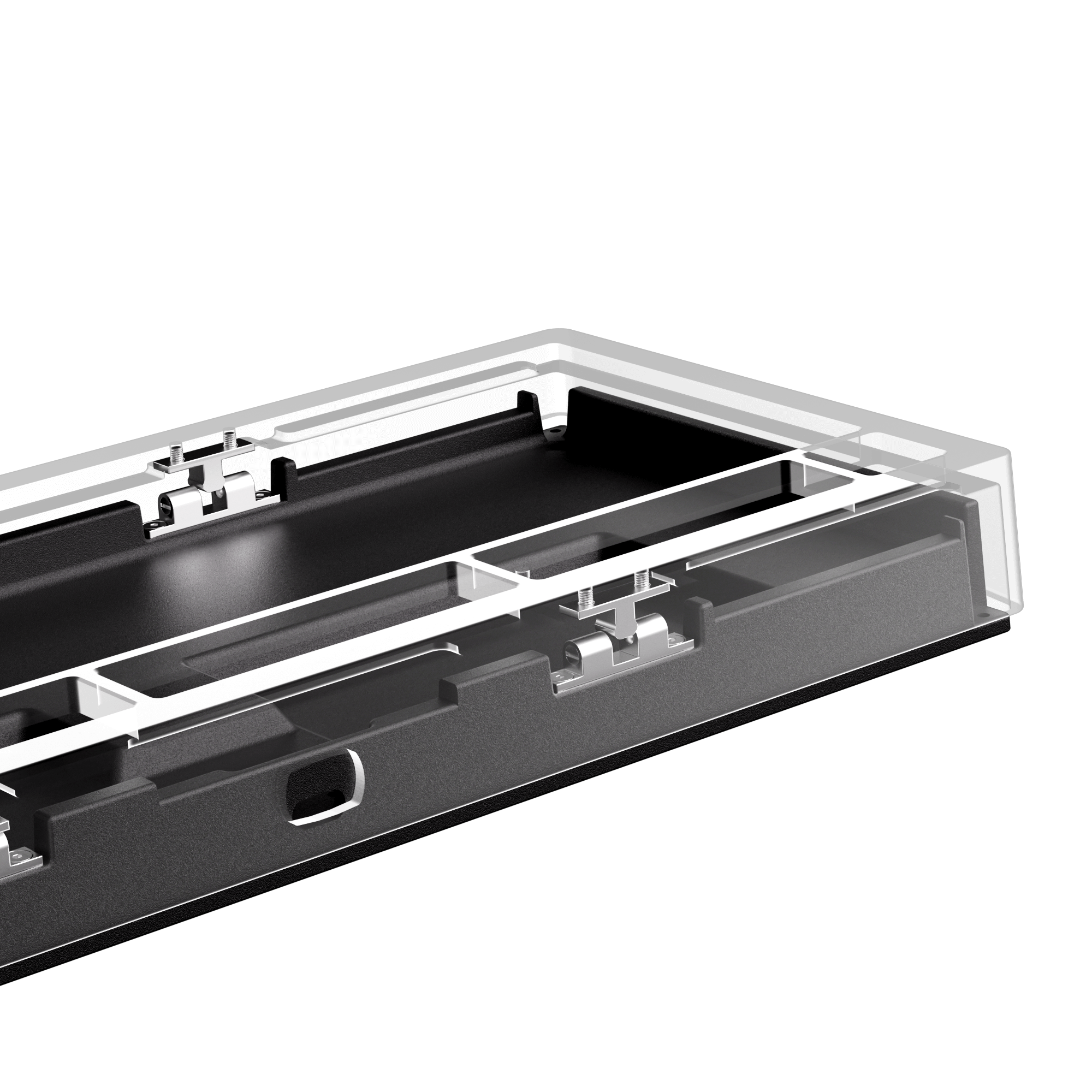

Ball-catch Design
Rapid Disassemble without Screws or Tools
Unlike typical screw-on mechanical keyboards, the M1 V5 Series features a ball catch to secure the case and adjustable load force that can be modified by tightening screws during installation for enhanced safety and stability.
Note: Before dissemble the top cover, please use the included key puller to pull out the knob.
Cross-Compatible with Mainstream Magnetic Switches
MonsGeek M1 V5 TMR Magnetic Keyboard provides compatibility with 5 third-party magnetic switches. Users can choose the appropriate switch from the MonsGeek Driver list and calibrate the keyboard easily after replacement. Mixing and matching them in different keys is also possible.
Disclaimer: High-percision switches require tuning and experimenting with the keyboard. The switches listed are guaranteed to perform at 0.01mm precision. Other switches may work but are unable to reach the claimed accuracy.
MagMech: Compatible with Magnetic Switches and Mechanical Switches
Users can mix and match magnetic switches and any 5-pin mechanical switches freely, like never before!
Imagine having only WASD / Arrow keys swapped for magnetic switches and leaving the rest for mechanical for a classic mechanical typing experience. What a dream!
Full Range RT0.01mm
Attain ultra-precise 0.01mm Rapid Trigger and adjustable actuation distance in 0.01mm steps. Users can adjust their typing or gaming experience for faster response times and improved accuracy, perfect for competitive gaming.
ARM Cortex-M4 CPU
The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C, ensuring faster performance and extended battery life (for wireless models only).
Universal 8K Polling Rate
With an 8000Hz polling rate for all keys in wired or 2.4Gwireless modes, enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.
Classic Features
Snap Key
Snap Key is MonsGeek’s implementation of SOCD, which prioritizes the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid and responsive control, especially in FPS games, where quick reactions and precise movements are crucial.
Adjustable Actuation Distance
These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.
Rapid Trigger (RT)

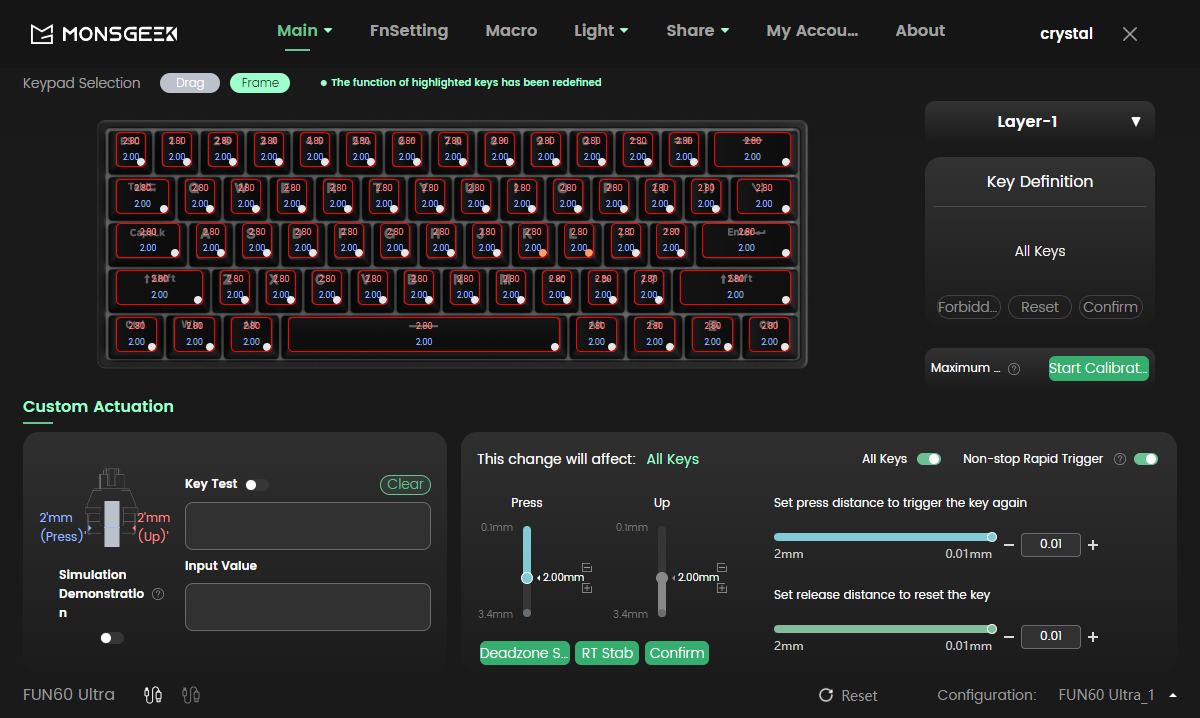

Rapid Trigger dynamically changes the keys’ actuation and deactivation points. Through the MonsGeek Driver, users can choose “All Buttons” or “Per Button” customization modes, as well as activate “Non-stop Rapid Trigger” for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.
For example, when gamers enable RT, they can achieve “Counter-Strafe“ in VALORANT games.
Dynamic Keystrokes (DKS)
Pressing a key can trigger four different key operations.
Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.
Toggle Key (TGL)
TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency.
Mod-Tap
Mod-Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.
A single keypress can achieve two functions: holding down the key for one function, and press the key for another.
Built-in 8000mAh Battery
With a high-capacity battery of around 8000mAh, users can enjoy prolonged periods of uninterrupted typing, gaming, or productivity without the need for constant recharging.

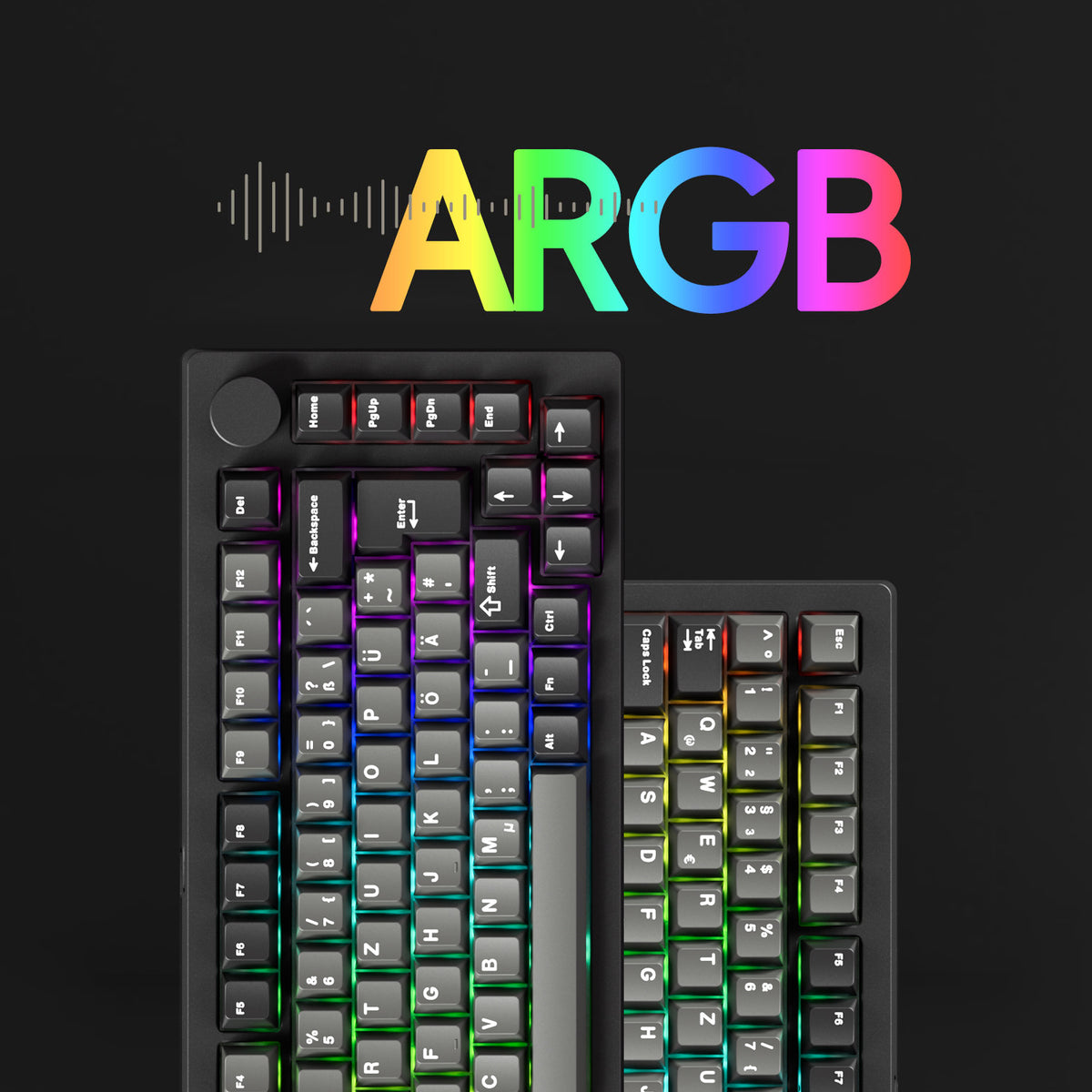

RGB
MonsGeek M1 V5 TMR Magnetic Keyboard can help you type in the dark with decent backlit. It has over 15 preset backlighting modes.
Glare magnetic switch features LED diffuser for 30% brighter RGB lighting.

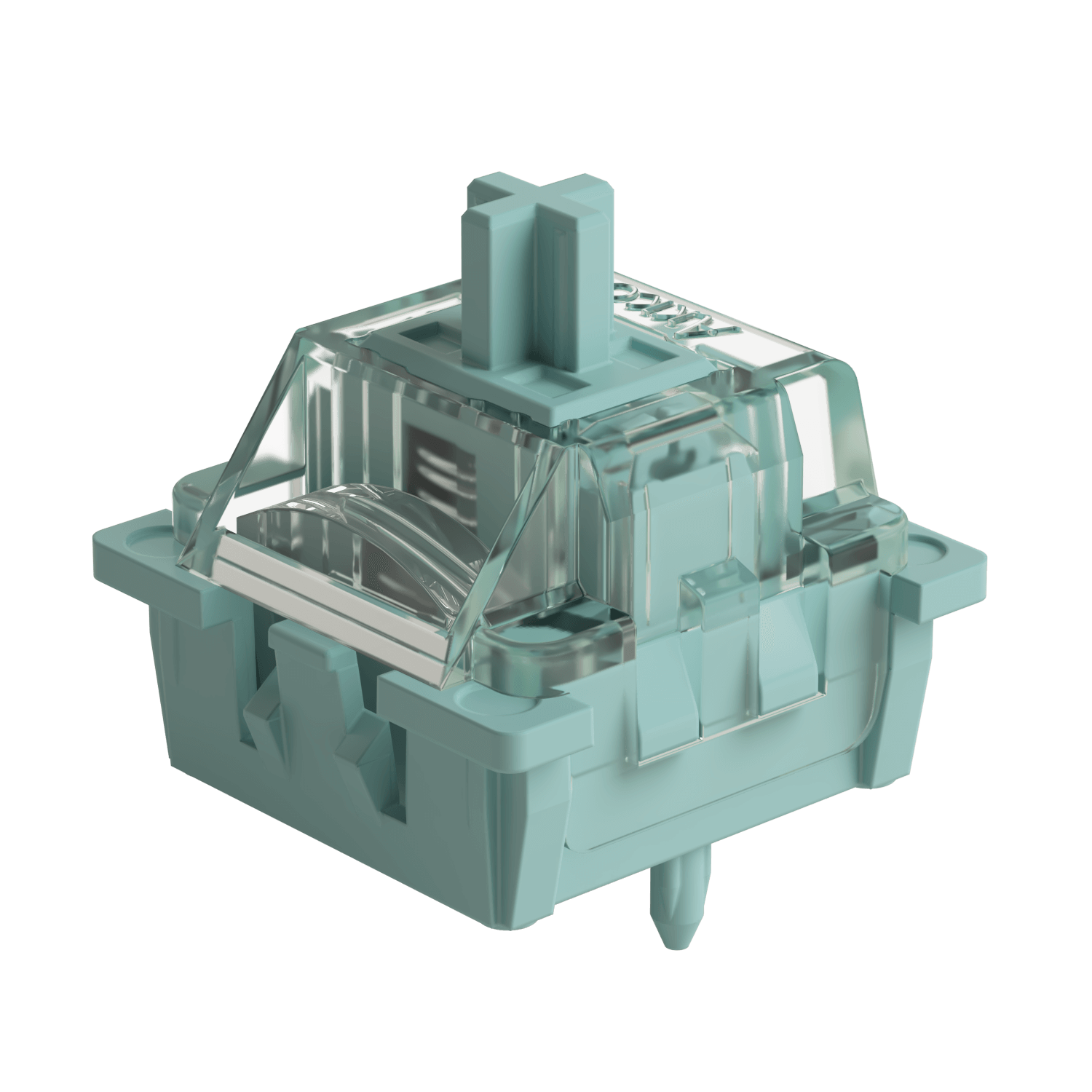

Akko Glare Magnetic Switch
These switches comes with extra pins for stabilizing, reversed polarity, and closed bottom for a better sound profile.
- Total Travel: 3.4mm
- Operating Force: 25gf Min
- Actuation force at 2.0mm Travel: 40±5gf
- End Force: 48gf Max
- Initial Magnetic Flux: 95+15GS (PcB1.6mm)
- Bottom Magnetic Flux:589+50GS (PcB1.6mm)
- Top/Stem/Bottom: PC/POM/PC
- LED Diffuser
Programable Knob
M1 V5 Series includes a fresh encoder and a floating design to prevent scratches on the case, as indicated in the earlier model.
Easily control the volume and lighting and program to other funtions.
PBT Double-shot Keycaps
Keycaps from MonsGeek M1 V5 TMR Magnetic Keyboard are made of durable PBT double-shot, which helps resist the shine that occurs from oils and sweat on the fingers.

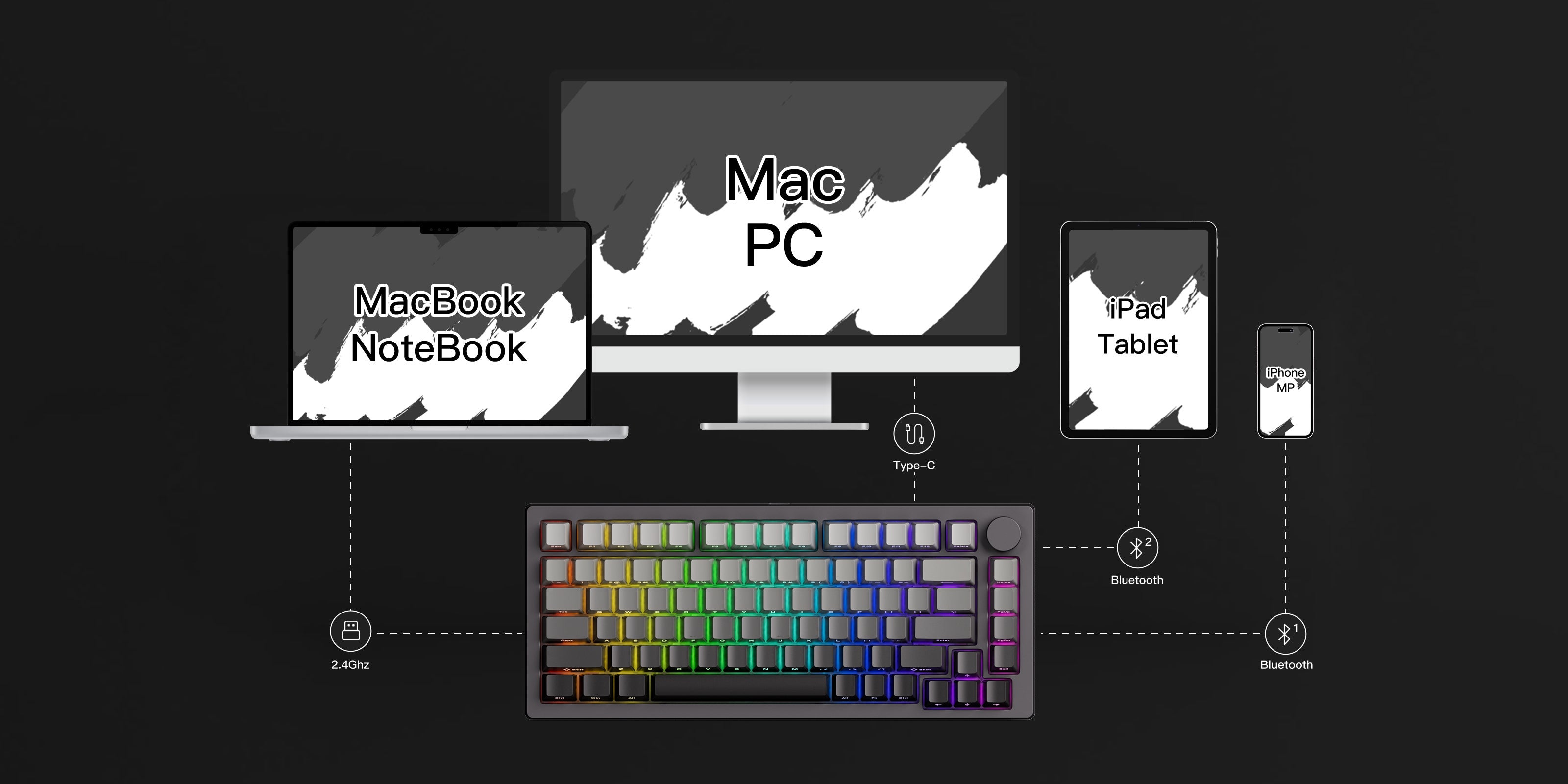

MonsGeek M1 V5 TMR Magnetic Keyboard Multi-Mode
MonsGeek M1 V5 TMR Magnetic Keyboard features a 75% layout and is equipped with 8000mAh built-in battery, providing extended, uninterrupted typing, gaming, or productivity without the need for frequent recharging.
2.4Ghz Wireless
Equipped with a receiver that allows users to utilize the 2.4GHz wireless mode, providing low latency suitable for gaming and typing purposes.
BT 5.0
Easy to connect up to 3 devices with a simple Fn+E/R/T combination, enabling seamless switching between tablets, computers, and phones.
USB-C Wired
Offer a choice for users who prefer a USB-C wired keyboard, ensuring consistent and rapid response times for FPS gaming and minimal input lag.
System Switch
Top: Mac Wireless Mode (built-in power supply on)
Middle: Default Windows Wired Mode (built-in power supply off)
Bottom: Windows Wireless Mode (built-in power supply on)
Note: The switch is located under the CAPS key
PORON Plate Foam
MonsGeek M1 V5 TMR Magnetic Keyboard is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.
Polycarbonate Plate
MonsGeek M1 V5 TMR Magnetic Keyboard is equipped with PORON plate foam, effectively reducing the noise generated by key switches, ensuring a purer and more comfortable tactile sound experience for the keyboard.
More Flexibility and Sounds Better
MonsGeek M1 V5 TMR Magnetic Keyboard come with a comprehensive upgrade to the noise reduction system, offering greater flexibility for experimenting with a variety of sound profiles.
MonsGeek M Series QC Disclaimer
M1 V5 TMR
TECH SPECS
M1 V5 TMR
M1 V5 VIA
M1 V5
Gasket Mount
Gasket Mount
Gasket Mount
Aluminum CNC
Aluminum CNC
Aluminum CNC
US-ANSI
ISO-DE/UK/Nordic;
US-ANSI
US-ANSI
Bluetooth5.0 / 2.4GHz / USB Type-C
Bluetooth5.0 / 2.4GHz / USB Type-C
Bluetooth5.0 / 2.4GHz / USB Type-C
8000mAh
8000mAh
8000mAh
South-facing RGB
South-facing RGB
South-facing RGB
Support
Support
Support
Support
N/A
N/A
Support
Support
Support
Support
N/A
N/A
0.01-2.00mm
N/A
N/A
0.1-3.40mm
N/A
N/A
PC
PC
PC
Custom Actuation/Mod-Tap/Toggle Key/Dynamic Keystroke/Keys Remapping/Customizable RGB/SOCD
N/A
N/A
Pre-assembled Demagnetized Plated-mounted TPU Double-shot Stabilizers
Pre-assembled Plated-mounted TPU Double-shot Stabilizers
Pre-assembled Plated-mounted TPU Double-shot Stabilizers
OEM Profile PBT Double-shot
ASA/Cherry Profile PBT Double-shot
Cherry Profile PBT Double-shot
MonsGeek Driver & Web-Based Driver
VIA
MonsGeek Driver & Web-Based Driver
Keyboard×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1, Gasket Silicions
Keyboard×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1, Gasket Silicions
Keyboard×1, Manual×1, Cable×1, Keycap Puller×1, Switch Puller×1, Receiver×1, Gasket Silicions
